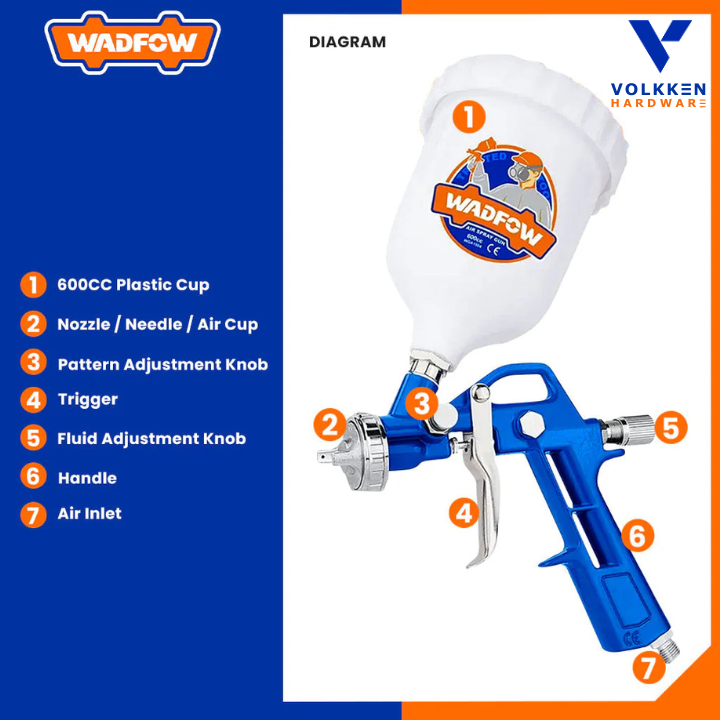

Air Spray Gun 600cc

WGA1504

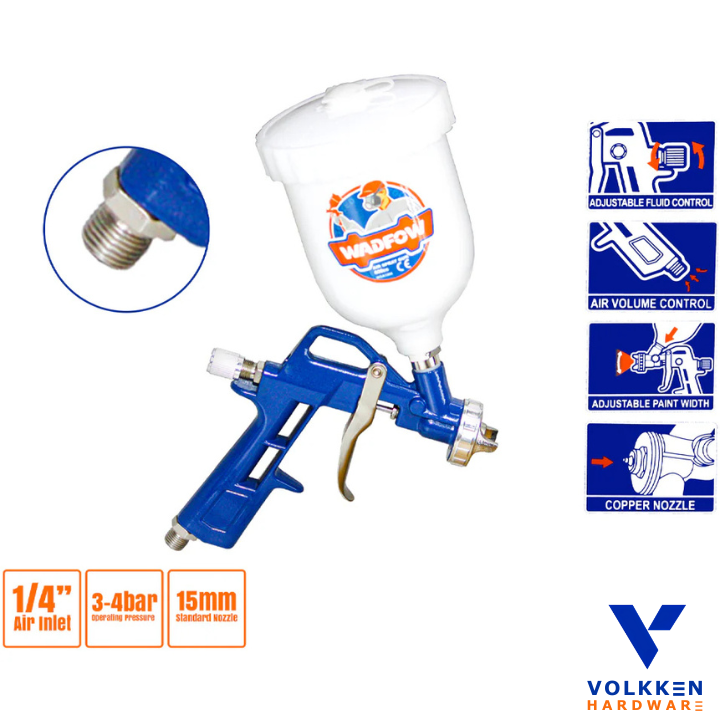

Air Inlet: 1/4 inch
Standard Nozzle: 1.5 mm
Optional Nozzle Range: 1.3 - 2.5 mm
Paint Capacity: 600 cc
Operating Pressure: 3 - 4 bar (43.5 - 58 PSI)
Air Consumption: 119 - 200 L/min (4.2 - 7.1 CFM)
Pattern Width: 180 - 250 mm (7-1/8 - 10 inches)
Double thread joint
Quick plug compatibility

Applications:

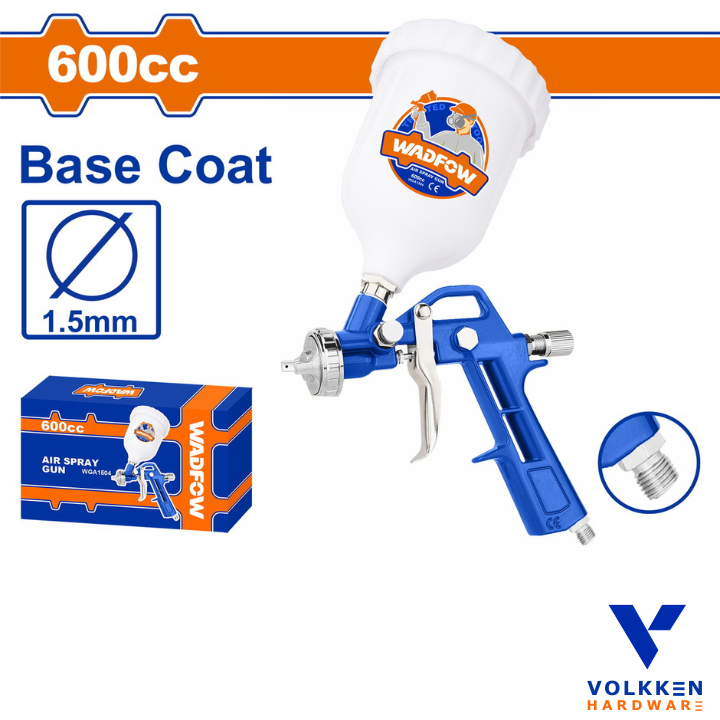

•  Suitable for Base Coats: Designed for applying base coats in automotive painting and other applications.

Features:

• HVLP Technology: High Volume, Low Pressure (HVLP) design provides efficient paint transfer and reduces overspray.
• Adjustable Pattern Width: Allows for controlling the spray pattern for different coverage needs.
• Multiple Nozzle Options: Compatible with a range of nozzle sizes for different paint viscosities and applications.
• Large Paint Capacity: 600cc cup holds a significant amount of paint for reduced refilling.
• Convenient Connections: Features a double thread joint and is compatible with quick plugs for easy setup and hose connection.
